ASTM A513/A519 Precision Drive Shaft Tubing – 1026, 1020, 1015, 4130 (7 x 0.120 inches & 2–8.625 inches)

ASTM A513/A519 Precision Drive Shaft Tubing – 1026, 1020, 1015, 4130 (7 x 0.120 inches & 2–8.625 inches)

Overview

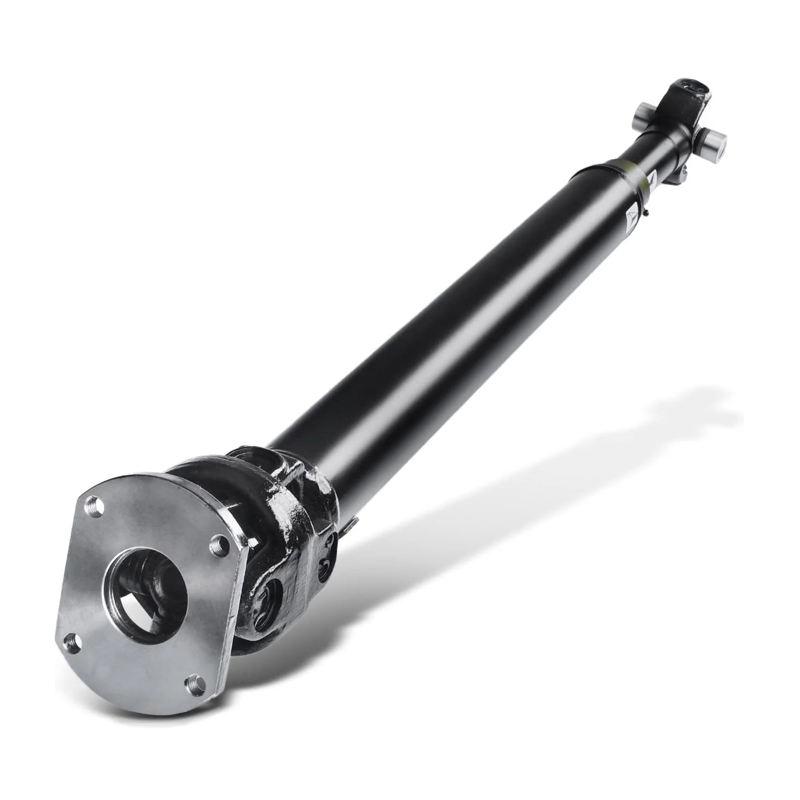

Maximize torque transmission with our ASTM A513 (welded/DOM) and ASTM A519 (seamless) Precision Drive Shaft Tubing in grades 1026, 1020, 1015, and 4130. Available in sizes from 2.000 to 8.625 inches outer diameter (OD) and 0.065 to 0.250 inches wall thickness (WT), including key sizes like 7.000 x 0.120 inches (177.8 x 3 mm) and 3.000 x 0.120 inches (76.2 x 3 mm), these high-strength tubes deliver exceptional performance for automotive and industrial power transmission. Engineered for dynamic load bearing, they ensure durability in drive shafts for cars, trucks, and heavy machinery, with minimal secondary uses in cylinders and rollers.

Why Choose Our Drive Shaft Tubing?

·High-Strength Performance: Grades 1026, 1020, 1015, and 4130 offer tensile strengths up to 621 N/mm², ideal for automotive drive shaft tubing and high-torque seamless applications.
·Precision Tolerances: Tight tolerances (e.g., 3.000 inches/76.2 mm OD ±0.005 inches, 0.120 inches/3 mm WT ±10%) ensure seamless integration into drive shaft assemblies.
·Superior Fatigue Resistance: ASTM A513 DOM tubing and A519 seamless mechanical tubing enhance durability for dynamic load bearing.
·Smooth Surface Finish: Clean, uniform surfaces reduce friction, boosting drive shaft performance and longevity.
·Industry-Standard Sizes: Common sizes like 7.000 x 0.120 inches, 3.000 x 0.120 inches, and 2.500 x 0.120 inches, within 2–8.625 inches OD, meet automotive and industrial needs.
·Cost-Effective Reliability: Carbon and alloy steel drive shaft tubing delivers top performance at competitive costs.

ASTM A513 DOM 1020 Tubing for Dynamic Load Bearing

Our ASTM A513 DOM 1020 tubing in 3 x 0.120 inches (76.2 x 3 mm) is specifically engineered for dynamic load bearing in automotive and industrial drive shafts. Cold-drawn over a mandrel, this high-strength welded tubing offers:

·Balanced Strength: Grade 1020 provides a minimum yield strength of 379 N/mm², ideal for medium-duty drive shafts in cars and light trucks.
·Enhanced Fatigue Resistance: Cold-worked DOM process ensures durability under high cyclic loading, perfect for performance vehicles and machinery.
·Precision Dimensions: 3.000 inches OD ±0.005 inches and 0.120 inches WT ±10% guarantee seamless assembly.
·Applications: Ideal for automotive drive shafts (e.g., passenger cars, light trucks) and industrial equipment requiring robust torque transmission under dynamic loads.
·Cost Efficiency: Offers reliable performance at a competitive price for high-torque applications.

Manufacturing Process

Our ASTM A513/A519 high-strength drive shaft tubing is crafted for precision and durability:

1. Electric Resistance Welding (ERW, A513): Steel strips are welded and cold-drawn over a mandrel (DOM) to achieve precise dimensions (e.g., 3.000 x 0.120 inches/76.2 x 3 mm), enhancing strength for precision welded tubing.
2. Seamless Processing (A519): Tubes are hot-rolled or pierced, then cold-drawn for superior strength, ideal for seamless torque transmission tubing.
3. Heat Treatment: Normalizing, stress-relieving, or annealing optimizes mechanical properties for dynamic load bearing.
4. Surface Finishing: Smooth, clean surfaces, often oiled or phosphated, ensure corrosion resistance and ease of assembly.
5. Quality Testing: Dimensional checks, tensile testing, and non-destructive testing (e.g., eddy current for A513, ultrasonic for A519) ensure compliance with ASTM standards.

This process delivers carbon steel drive shaft tubing and alloy steel drive shaft tubing optimized for automotive and industrial applications.

Material Grades

Our drive shaft tubes are available in grades 1026, 1020, 1015 (A513/A519), and 4130 (A519), each optimized for power transmission:

Chemical Composition Comparison (Max % unless specified)

Note: Silicon content is typically 0.15–0.35% for 4130, not specified for others unless alloyed.

Mechanical Properties Comparison (DOM for A513, Cold-Drawn for A519)

Note: Properties are for A513 DOM or A519 cold-drawn condition, ideal for drive shafts. Other conditions (e.g., as-welded, normalized) vary in strength or ductility.

Delivery Conditions

·Drawn Over Mandrel (DOM, A513): Welded tubes cold-drawn for maximum strength, ideal for automotive drive shafts (e.g., 3.000 x 0.120 inches).
·Cold-Drawn (A519): Seamless tubes cold-drawn for superior strength, perfect for high-torque industrial drive shafts.
·As-Welded (A513): Cost-effective welded tubes for less demanding drive shafts.
·Normalized (+N): Heat-treated for uniform properties, suitable for standard drive shafts.
·Stress-Relieved (+SR): Enhances ductility for drive shaft components requiring welding.
·Annealed (+A): Maximizes formability for non-drive shaft applications.

Grade Descriptions

·1015 (A513/A519): Low-carbon steel with excellent weldability, ideal for cost-effective drive shafts in light vehicles.
·1020 (A513/A519): Balanced strength and formability, perfect for medium-duty drive shafts in automotive and industrial applications, especially in 3 x 0.120 inches for dynamic loads.
·1026 (A513/A519): Higher-carbon steel with superior strength, suited for demanding drive shafts in cars and trucks.
·4130 (A519): Low-alloy steel with high strength, ideal for heavy-duty seamless drive shafts in performance vehicles and machinery.

Specifications

Standards: ASTM A513 (Welded/DOM), ASTM A519 (Seamless)
Size Range:
·Outer Diameter (OD): 2.000–8.625 inches (50.8–219.1 mm)
·Wall Thickness (WT): 0.065–0.250 inches (1.65–6.35 mm)
·Length: Random (3.3–40 ft / 1,000–12,000 mm) or custom-cut
Common Sizes for Drive Shafts (OD x WT, imperial):
·1.750 x 0.095 inches (44.5 x 2.4 mm, lightweight automotive drive shafts)
·2.000 x 0.120 inches (50.8 x 3 mm, small to medium automotive drive shafts)
·2.375 x 0.120 inches (60.3 x 3 mm, medium-duty automotive drive shafts)
·2.500 x 0.120 inches (63.5 x 3 mm, mid-range automotive and light industrial drive shafts)
·3.000 x 0.120 inches (76.2 x 3 mm, automotive drive shafts for dynamic loads)
·3.000 x 0.083 inches (76.2 x 2.1 mm, automotive and light industrial drive shafts)
·3.500 x 0.134 inches (88.9 x 3.4 mm, heavy-duty vehicle drive shafts)
·4.000 x 0.156 inches (101.6 x 4 mm, medium-duty industrial and heavy vehicle drive shafts)
·4.500 x 0.188 inches (114.3 x 4.8 mm, industrial machinery drive shafts)
·5.000 x 0.188 inches (127 x 4.8 mm, heavy-duty industrial drive shafts)
·6.625 x 0.188 inches (168.3 x 4.8 mm, high-torque industrial applications)
·7.000 x 0.120 inches (177.8 x 3 mm, heavy-duty industrial and commercial vehicle drive shafts)
Tolerances (per ASTM A513/A519):
·OD (2.000–3.000 inches): ±0.005 inches; (>3.000–8.625 inches): ±0.25%
·WT: ±10%
·Length: ±0.118 inches (±3 mm) for cut lengths
Delivery Conditions:
·DOM (A513): High precision for welded drive shafts.
·Cold-Drawn (A519): Superior strength for seamless drive shafts.
·As-Welded (A513), Normalized (+N), Stress-Relieved (+SR), Annealed (+A).
·Surface Conditions: Smooth, clean, or coated (oiled/phosphated) for corrosion resistance and assembly ease.

Applications

Our ASTM A513/A519 1026, 1020, 1015, and 4130 precision tubes (e.g., 3.000 x 0.120 inches/76.2 x 3 mm, 7.000 x 0.120 inches) are designed for:

Drive Shafts: High-performance tubing for automotive (cars, trucks with 3.000 x 0.120 inches, 2.375 x 0.120 inches) and industrial (machinery with 4.500 x 0.188 inches, 7.000 x 0.120 inches) drive shafts. Grades 1026 and 4130 (DOM/cold-drawn) ensure robust torque transmission; 1020 (e.g., 3 x 0.120 inches) excels in dynamic load applications; 1015 suits lighter-duty uses.
Secondary Applications (limited use):
·Hydraulic/pneumatic cylinders (1026, 4130 for high-pressure; 1015, 1020 for standard).
·Conveyor rollers (1015, 1020 for standard; 1026 for heavy-duty).
·Automotive components (1026, 4130).

Quality Assurance
All 1026, 1020, 1015, and 4130 tubes comply with ASTM A513/A519 standards. Test certificates per DIN EN 10204 3.1 verify chemical composition, mechanical properties, and dimensional accuracy. Eddy current (A513) and ultrasonic (A519) testing, plus flattening and surface inspections, ensure top performance for dynamic load bearing tubing.

Drive Your Projects Forward

·Tailored for Drive Shafts: Sizes like 3.000 x 0.120 inches (76.2 x 3 mm) for dynamic loads and 7.000 x 0.120 inches, with DOM/cold-drawn conditions, optimize power transmission.
·Industry-Leading Standards: ASTM A513/A519 compliance ensures reliability and quality.
·Flexible Supply: Stocked standard sizes and customizable options for your drive shaft needs.
·Expert Guidance: Our team helps you select the perfect grade and size for maximum efficiency.

Order now to optimize your drive shaft performance with ASTM A513/A519 Precision Tubing. Request a quote at hongli-jy@126.com or visit hltube.com to explore our full range of precision tubing!
