Overview

Drive your projects forward with our EN 10305-2 Precision Welded Drive Shaft Tubing in grades E355, E235, E420, and E275. Available in sizes from Ø50 to 219 mm (1.969–8.622 inches) outer diameter (OD) and 1 to 5 mm (0.039–0.197 inches) wall thickness (WT), including the robust Ø60 x 3.5 mm (2.362 x 0.138 inches), these high-strength welded tubes deliver exceptional performance for automotive and industrial power transmission. Engineered for efficient torque transfer, they ensure durability in drive shafts for cars, trucks, and heavy machinery, with minimal secondary uses in cylinders and rollers.

Why Choose Our Drive Shaft Tubing?

·High-Strength Performance: Grades E355, E235, E420, and E275 offer yield strengths up to 470 N/mm², ideal for automotive drive shaft tubing and industrial power transmission.
·Precision Tolerances: Tight tolerances (e.g., Ø60 mm/2.362 inches OD ±0.15%, 3.5 mm/0.138 inches WT ±10%) ensure seamless integration into drive shaft assemblies.
·Superior Fatigue Resistance: Cold-drawn welded (CDW) process enhances durability, minimizing wear in high-torque environments.
·Smooth Surface Finish: Clean, uniform surfaces reduce friction, boosting drive shaft performance and longevity.
·Global-Standard Sizes: Common sizes like Ø60 x 3.5 mm (2.362 x 0.138 inches) and Ø180 x 3 mm (7.087 x 0.118 inches), within Ø50–219 mm, meet automotive and industrial needs.
·Cost-Effective Reliability: High-quality carbon steels deliver top performance at competitive costs.

Manufacturing Process

Our EN 10305-2 precision welded drive shaft tubing is crafted for excellence:

1. Cold-Drawn Welded (CDW): Steel strips are welded and cold-drawn to achieve precise dimensions (e.g., Ø60 x 3.5 mm/2.362 x 0.138 inches), enhancing strength and surface quality for precision welded tubing.
2. Heat Treatment: Normalizing (+N) or cold-drawn (+C, +LC) conditions optimize mechanical properties for torque transmission.
3. Surface Finishing: Smooth, clean surfaces, often oiled or phosphated, ensure corrosion resistance and ease of assembly.
4. Quality Testing: Dimensional checks, tensile testing, and non-destructive testing (e.g., eddy current) ensure compliance with EN 10305-2 standards.
This process delivers high-strength welded tubing optimized for drive shaft applications.

Material Grades

Our drive shaft tubes are available in grades E355, E235, E420, and E275, each tailored for power transmission:

Chemical Composition Comparison (Max % unless specified)

Note: E420 may include alloying elements (e.g., Nb, V, Ti) up to 0.12% total.

Mechanical Properties Comparison (Cold-Drawn, +C)

Note: Properties are for cold-drawn (+C) condition, ideal for drive shafts. Other conditions (e.g., +N, +LC) vary in strength or ductility.

Delivery Conditions

·Cold-Drawn (+C): Maximum strength and precision, ideal for automotive drive shaft tubing (e.g., Ø60 x 3.5 mm).
·Cold-Drawn and Stress-Relieved (+LC): Enhanced formability for drive shaft components requiring further processing.
·Normalized (+N): Heat-treated for uniform properties, suitable for standard drive shafts.
·As-Welded (+W): Cost-effective option for less demanding drive shafts.

Grade Descriptions

·E235: Low-carbon steel with excellent weldability, ideal for cost-effective drive shafts in light vehicles.
·E275: Balanced strength and formability, perfect for medium-duty drive shafts in automotive applications.
·E355: Higher strength for demanding drive shafts in cars and trucks, offering superior fatigue resistance.
·E420: High-strength steel with enhanced toughness, ideal for heavy-duty drive shafts in industrial machinery.

Specifications

Standard: EN 10305-2 (Cold-Drawn Welded Precision Steel Tubes)

Size Range:

·Outer Diameter (OD): Ø50–219 mm (1.969–8.622 inches)
·Wall Thickness (WT): 1–5 mm (0.039–0.197 inches)
·Length: Random (1,000–12,000 mm / 3.3–40 ft) or custom-cut
 Common Sizes for Drive Shafts (OD x WT, metric):

· Ø60 x 3.5 mm (2.362 x 0.138 inches, medium-duty automotive drive shafts)
· Ø76 x 3 mm (2.992 x 0.118 inches, automotive and light industrial drive shafts)
· Ø89 x 4 mm (3.504 x 0.157 inches, heavy-duty vehicle drive shafts)
· Ø114 x 4.5 mm (4.488 x 0.177 inches, industrial machinery drive shafts)
· Ø168 x 5 mm (6.614 x 0.197 inches, high-torque industrial applications)
· Ø180 x 3 mm (7.087 x 0.118 inches, heavy-duty industrial and commercial vehicle drive shafts)
Tolerances (per EN 10305-2):

·OD (≤80 mm): ±0.15%; (>80–219 mm): ±0.20%
·WT: ±10%
·Length: ±3 mm for cut lengths
·Delivery Conditions: Cold-Drawn (+C), Cold-Drawn and Stress-Relieved (+LC), Normalized (+N), As-Welded (+W)
·Surface Conditions: Smooth, clean, or coated (oiled/phosphated) for corrosion resistance and assembly ease.

Applications

Our EN 10305-2 E355, E235, E420, and E275 precision tubes (e.g., Ø60 x 3.5 mm/2.362 x 0.138 inches) are designed for:

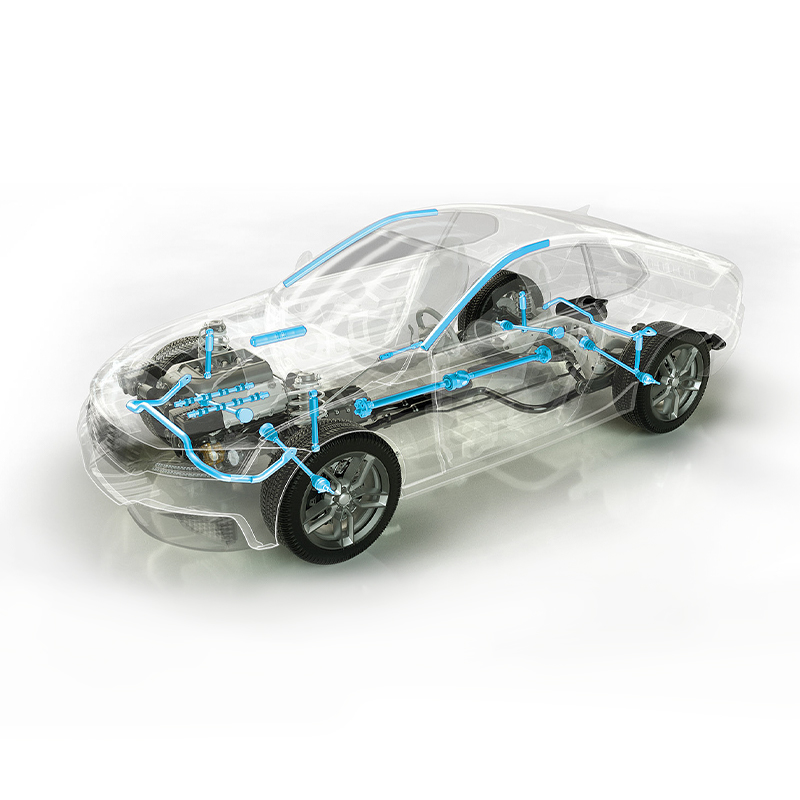

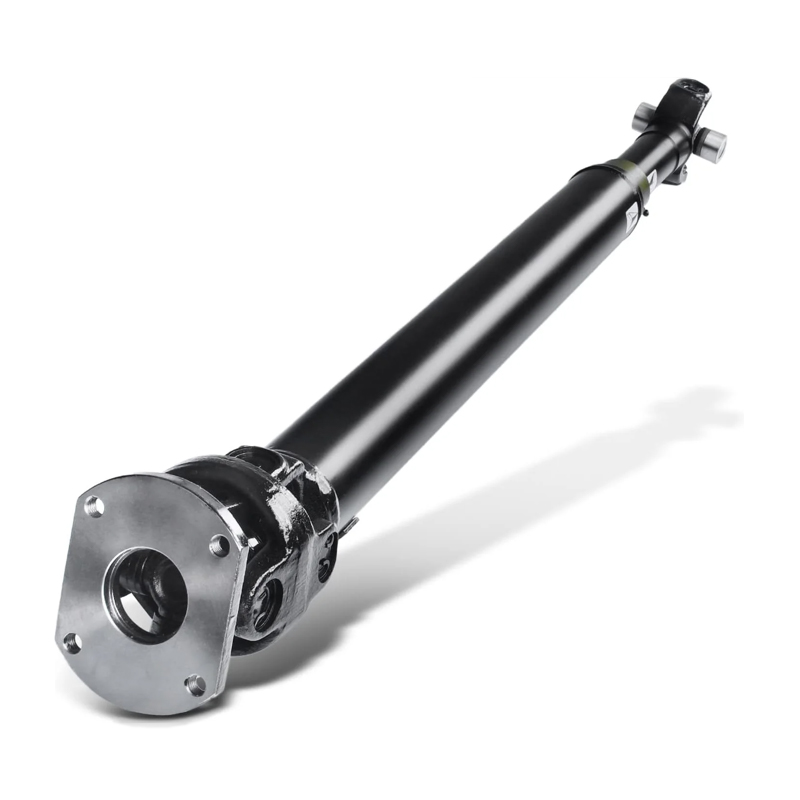

Drive Shafts: High-performance tubing for automotive (cars, trucks with Ø60 x 3.5 mm, Ø89 x 4 mm) and industrial (machinery with Ø114 x 4.5 mm, Ø180 x 3 mm) drive shafts. Grades E355 and E420 ensure robust torque transmission for precision tubing for automotive OEMs; E235 and E275 suit lighter-duty applications.
Secondary Applications (limited use):

·Hydraulic/pneumatic cylinders (E355, E420 for high-pressure; E235, E275 for standard).
·Conveyor rollers (E235, E275 for standard; E355 for heavy-duty).
·Automotive components (E355, E420).

Quality Assurance

All E355, E235, E420, and E275 tubes comply with EN 10305-2 standards. Test certificates per DIN EN 10204 3.1 verify chemical composition, mechanical properties, and dimensional accuracy. Eddy current testing, flattening tests, and surface inspections ensure top performance for industrial power transmission tubing.

Drive Your Projects Forward

·Tailored for Drive Shafts: Common sizes like Ø60 x 3.5 mm (2.362 x 0.138 inches) and Ø180 x 3 mm (7.087 x 0.118 inches), with cold-drawn conditions, optimize performance for power transmission.
·Global Standards Compliance: EN 10305-2 ensures reliability and quality for worldwide markets.

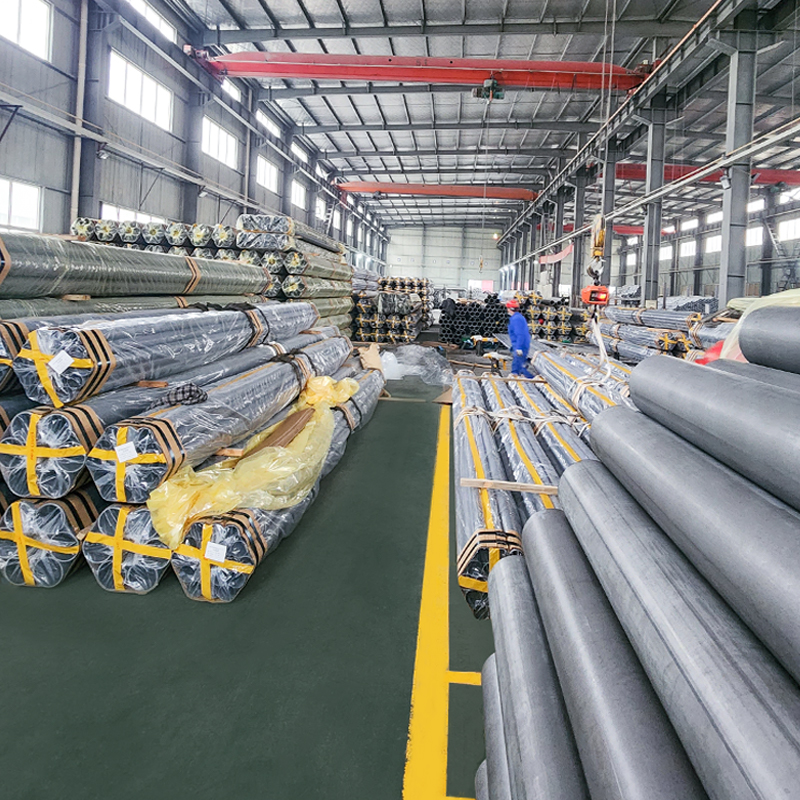

·Flexible Supply: Stocked standard sizes and customizable options for your drive shaft needs.
·Expert Guidance: Our team helps you select the perfect grade and size for maximum efficiency.

Order now to enhance your drive shaft performance with EN 10305-2 Precision Welded Tubing. Request a quote at hongli-jy@126.com or visit hltube.com to explore our full range of precision tubing!
