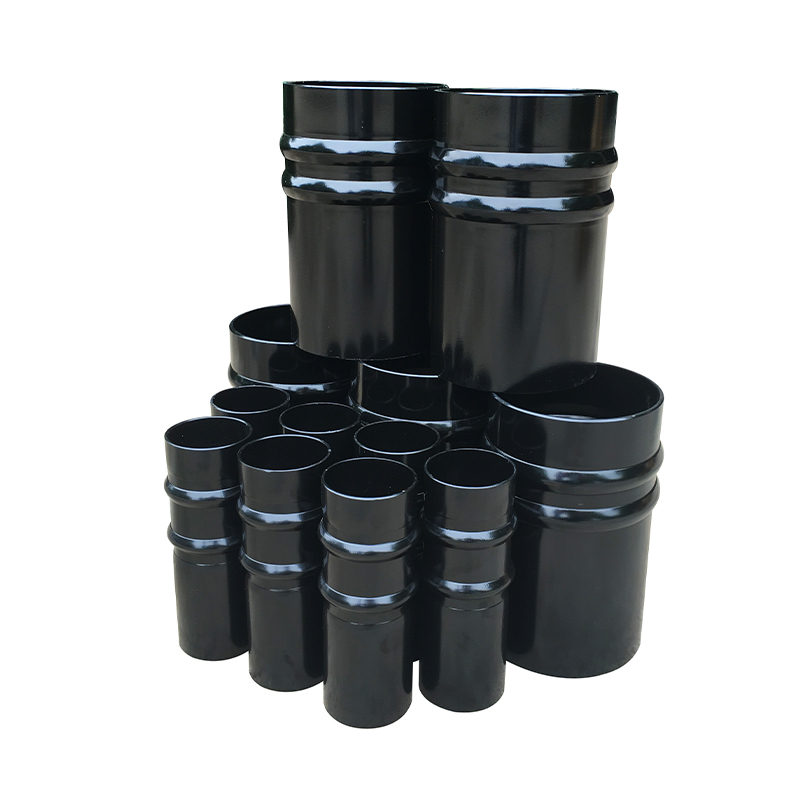

Our Custom Fabricated Tubing offers precision bent, welded, and shaped tubes tailored for your structural, industrial, and mechanical applications.
This includes:
·Carbon steel (ASTM A513 1020, ASTM A519 4140, EN 10305-2 E235)
·Stainless steel (AISI 304, AISI 316)
·Custom dimensions: OD, ID, wall thickness, and length
·Custom shapes: Round, square, rectangular, and complex profiles
·Welding and finishing: MIG/TIG, polished, coated, or galvanized
·Ideal for hydraulic systems, industrial machinery, automotive structures, construction frameworks, and other applications where standard tubing cannot meet design requirements.
Typical Materials & Grades
|
Steel Grade
|
Features
|
Example Sizes / Applications
|
|
ASTM A513 1020
|
Carbon steel, yield ~350 N/mm², tensile ~420 N/mm²
|
Ø50.8 × 2 mm, round, automotive & structural
|
|
ASTM A519 4140
|
High-strength alloy, yield ~655 N/mm², tensile ~862 N/mm²
|
Ø76.2 × 3 mm, heavy-duty machinery
|
|
EN 10305-2 E235
|
Precision carbon steel, lightweight applications
|
50 × 50 × 2 mm, square
|
|
AISI 304 (EN 1.4301)
|
Stainless steel, corrosion-resistant
|
Ø50.8 × 2 mm, round, construction & industrial
|
|
AISI 316 (EN 1.4401)
|
Enhanced corrosion resistance for marine/chemical
|
60 × 40 × 2 mm, rectangular
|
These grades support applications in automotive, construction, industrial, and marine environments, following ASTM and EN standards.
Why Choose Our Custom Fabricated Tubing?
·Flexible Design: Bent and welded to precise round, square, or rectangular shapes
·High Strength: Carbon and alloy steel options for heavy-duty applications
·Corrosion Resistance: Stainless steel options for harsh environments
·Precision Tolerances: e.g., Ø50.8 mm OD ±0.1 mm, 2 mm WT ±10%
·Versatile Sizes & Shapes: Round, square, and rectangular profiles
·Cost-Effective Customization: High-quality fabrication at competitive costs
Common Sizes and Shapes
|
Profile
|
Typical Sizes
|
Notes
|
|
Round
|
Ø12.7–101.6 mm
|
e.g., Ø50.8 × 2 mm for automotive frames
|
|
Square
|
20 × 20 mm to 100 × 100 mm
|
e.g., 50 × 50 × 2 mm for structural supports
|
|
Rectangular
|
40 × 60 mm to 100 × 60 mm
|
e.g., 60 × 40 × 2 mm for machinery frames
|
|
Wall Thickness
|
1–5 mm
|
Dependent on OD/ID and load requirements
|
|
Length
|
Up to 12 m
|
Custom-cut per customer specification
|
Manufacturing Process
1. Tube Selection: Cold-drawn or hot-rolled, based on steel grade
2. Forming: Shaping into round, square, rectangular, or custom profiles
3. Bending: CNC precision bending for exact angles and radii
4. Welding: MIG, TIG, or ERW welding for strong, seamless joints
5. Surface Finishing: Polished (Ra ≤0.8 µm for stainless, Ra ≤1.6 µm for carbon steel) or coated (oiled, galvanized)
6. Quality Testing: Dimensional checks, weld integrity, and non-destructive testing
Material Specifications
ASTM A513 1020 (Max %)
·C: 0.18–0.23 | Mn: 0.30–0.60 | P: 0.04 | S: 0.05
·Mechanical: Yield ~350 N/mm², Tensile ~420 N/mm², Elongation 15%
AISI 304 (Max %)
·C: 0.08 | Mn: 2.0 | P: 0.045 | S: 0.03 | Cr: 18–20 | Ni: 8–10.5
·Mechanical: Yield ~205 N/mm², Tensile 515–690 N/mm², Elongation 40%
Tolerances (per ASTM A513)
·OD (Round): ±0.1 mm (Ø12.7–76.2 mm), ±0.15 mm (>76.2–101.6 mm)
·Dimensions (Square/Rectangular): ±0.15 mm
·WT: ±10%
·Length: ±5 mm
Delivery Conditions
·Cold-Drawn, Annealed, or Normalized
·Surface Conditions: Polished, oiled, or galvanized
Applications
·Automotive: Bent exhaust systems, roll cages, chassis components
·Construction: Structural supports, railings, frameworks
·Industrial: Machinery frames, conveyor systems, custom fittings
·Marine / Chemical: Corrosion-resistant piping and fittings
·Lightweight / Precision Components: Components with minimal secondary use
Pricing & Availability
·Estimated: $2–$6 per kg (depends on volume, region, bending complexity)
·Contact for custom quotes at [insert contact details]
Quality Assurance
·Complies with ASTM A513, A519, EN 10305-2 standards
·Certified DIN EN 10204 3.1 for chemical composition, mechanical properties, and dimensional accuracy
·Non-destructive testing, weld inspection, and tensile testing included
